Mini Skid Steer Buckets
The new Mini Skid Steer Buckets delivers big strength for small machines. Reinforced with heavy-duty components and precision welded for lasting durability, it’s built to handle tough digging, loading, and grading jobs day after day. From top tube to wear strips, every Mini Skid Steer Bucket is reinforced where it counts. Designed, built, and tested in the USA, it’s made to outperform in the compact class with thick steel, smart reinforcements, and long-lasting reliability you can count on.
Features
- Quarter inch steel shell and side plates built to take heavy use
- Half inch cutting edge with bottom wear strips
- Fully welded bucket and wear strips
- Drilled cutting edge for optional bolt on reversible edge
- Optional welded teeth
- Offered in 36” up to 48” sizes
- Made locally in the USA
| Part Number | Mount Type | Width (nominal in) | Outside Width (in) | Bucket Type | Cutting Edge | Include Teeth | # Teeth | Cu Ft Heaped | Depth (in) | Height (in) | Weight (lb) |
| 1303663W4140 | Mini Universal | 36 | 36.63 | Utility | Weld on | No | 0 | 6.3 | 27.38 | 18.21 | 228 |
| 1303663B4140 | Mini Universal | 36 | 36.63 | Utility | Bolt on | No | 0 | 6.3 | 27.38 | 18.21 | 254 |
| 1303663W4140T | Mini Universal | 36 | 36.63 | Digging | Weld on | Yes | 5 | 6.3 | 27.38 | 18.21 | 247 |
| 1304273W4140 | Mini Universal | 42 | 42.63 | Utility | Weld on | No | 0 | 7.3 | 27.38 | 18.21 | 251 |
| 1304273B4140 | Mini Universal | 42 | 42.63 | Utility | Bolt on | No | 0 | 7.3 | 27.38 | 18.21 | 281 |
| 1304273W4140T | Mini Universal | 42 | 42.63 | Digging | Weld on | Yes | 5 | 7.3 | 27.38 | 18.21 | 270 |
| 1304476W4140 | Mini Universal | 44 | 44.63 | Utility | Weld on | No | 0 | 7.6 | 27.38 | 18.21 | 259 |
| 1304476W4140T | Mini Universal | 44 | 44.63 | Digging | Weld on | Yes | 7 | 7.6 | 27.38 | 18.21 | 293 |
| 1304883W4140 | Mini Universal | 48 | 48.63 | Utility | Weld on | No | 0 | 8.3 | 27.38 | 18.21 | 274 |
| 1304883W4140T | Mini Universal | 48 | 48.63 | Digging | Weld on | Yes | 7 | 8.3 | 27.38 | 18.21 | 308 |
| 1303663W332 | Bobcat | 36 | 36.63 | Utility | Weld on | No | 0 | 6.3 | 27.38 | 18.21 | 246.55 |
| 1303663B332 | Bobcat | 36 | 36.63 | Utility | Bolt on | No | 0 | 6.3 | 27.38 | 18.21 | 272.55 |
| 1303663W332T | Bobcat | 36 | 36.63 | Digging | Weld on | Yes | 5 | 6.3 | 27.38 | 18.21 | 265.55 |
| 1304273W332 | Bobcat | 42 | 42.63 | Utility | Weld on | No | 0 | 7.3 | 27.38 | 18.21 | 269.55 |
| 1304273B332 | Bobcat | 42 | 42.63 | Utility | Bolt on | No | 0 | 7.3 | 27.38 | 18.21 | 299.55 |
| 1304273W332T | Bobcat | 42 | 42.63 | Digging | Weld on | Yes | 5 | 7.3 | 27.38 | 18.21 | 288.55 |
| 1304476W332T | Bobcat | 44 | 44.63 | Digging | Weld on | Yes | 7 | 7.6 | 27.38 | 18.21 | 311.55 |
| 1304883W332 | Bobcat | 48 | 48.63 | Utility | Weld on | No | 0 | 8.3 | 27.38 | 18.21 | 292.55 |
| 1304883W332T | Bobcat | 48 | 48.63 | Digging | Weld on | Yes | 7 | 8.3 | 27.38 | 18.21 | 326.55 |

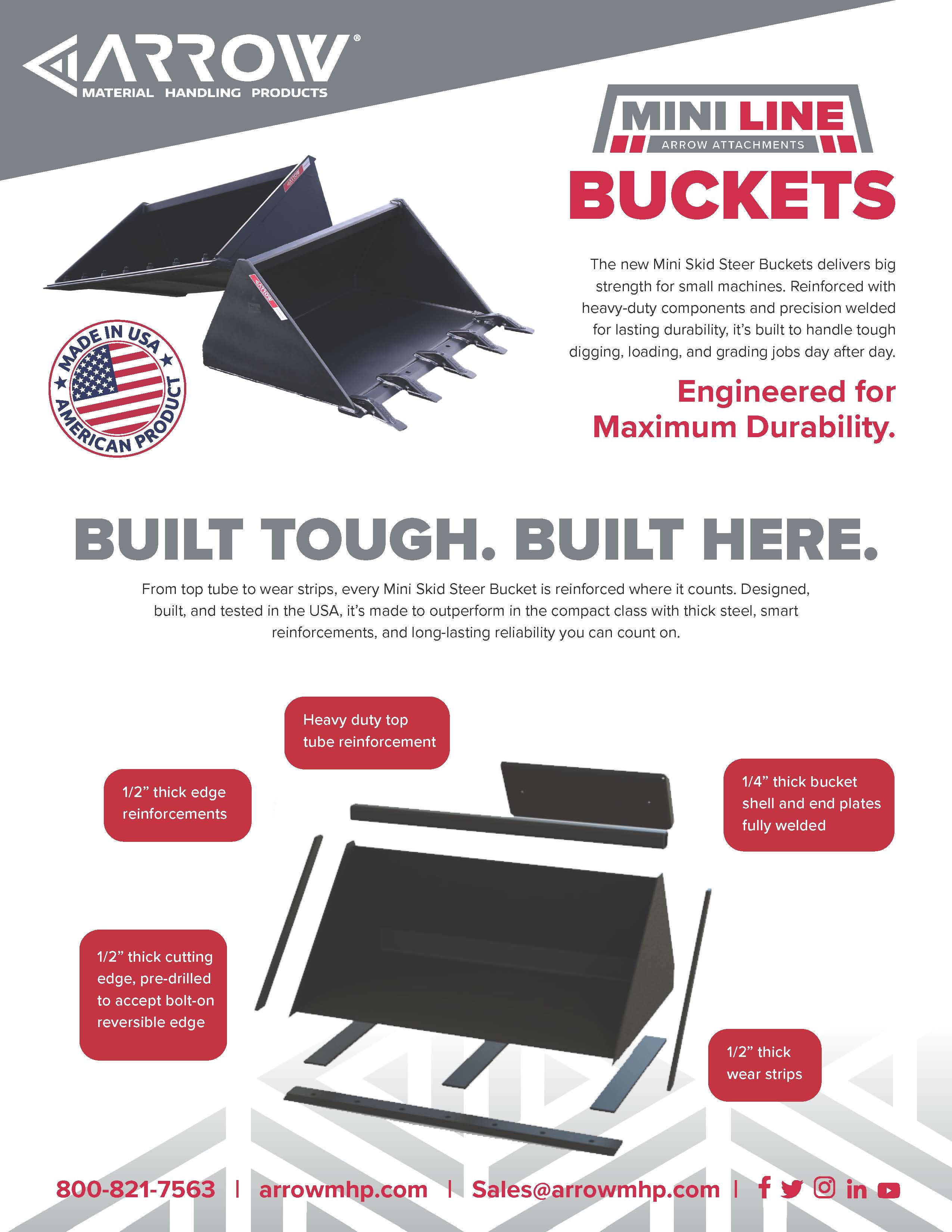

Brochure
