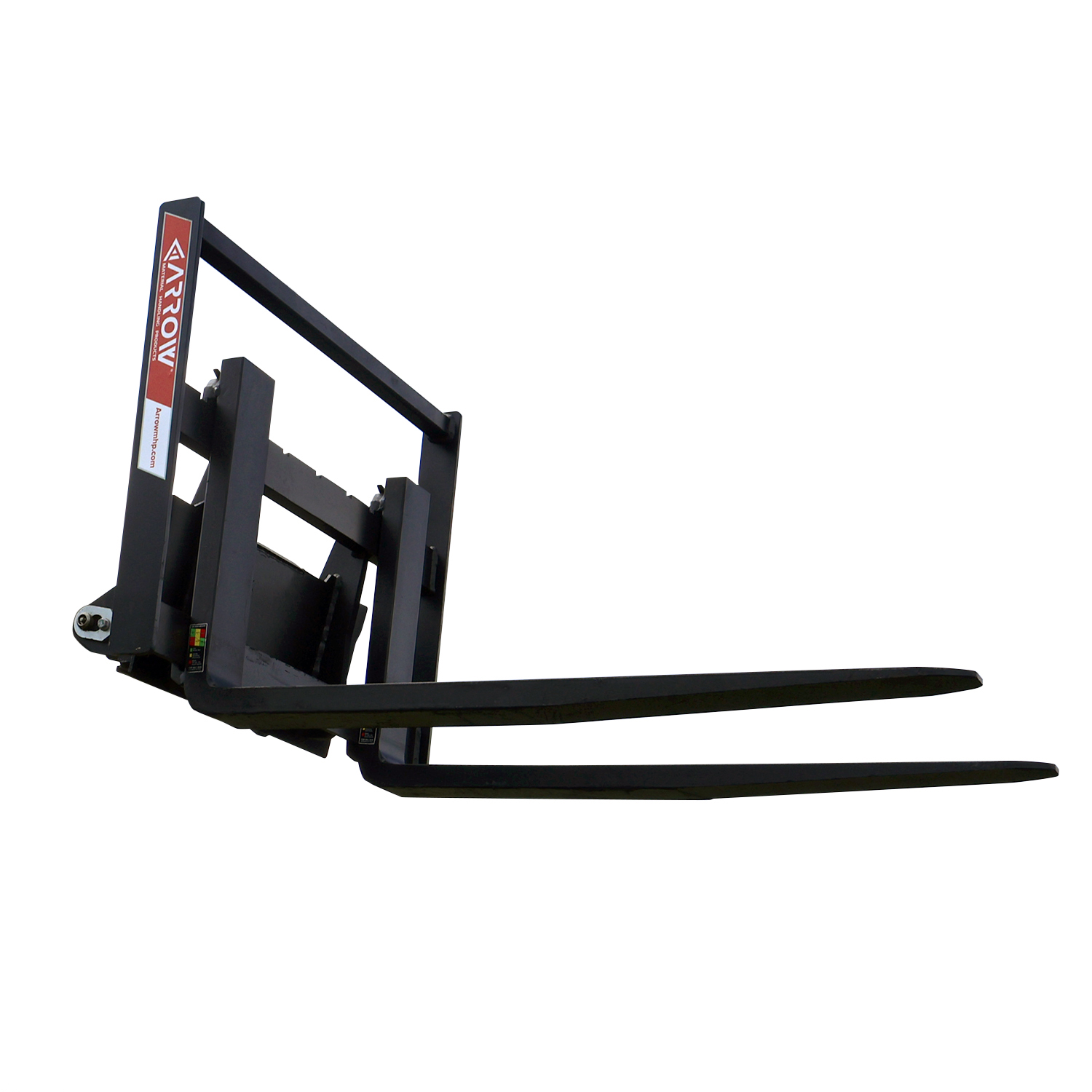

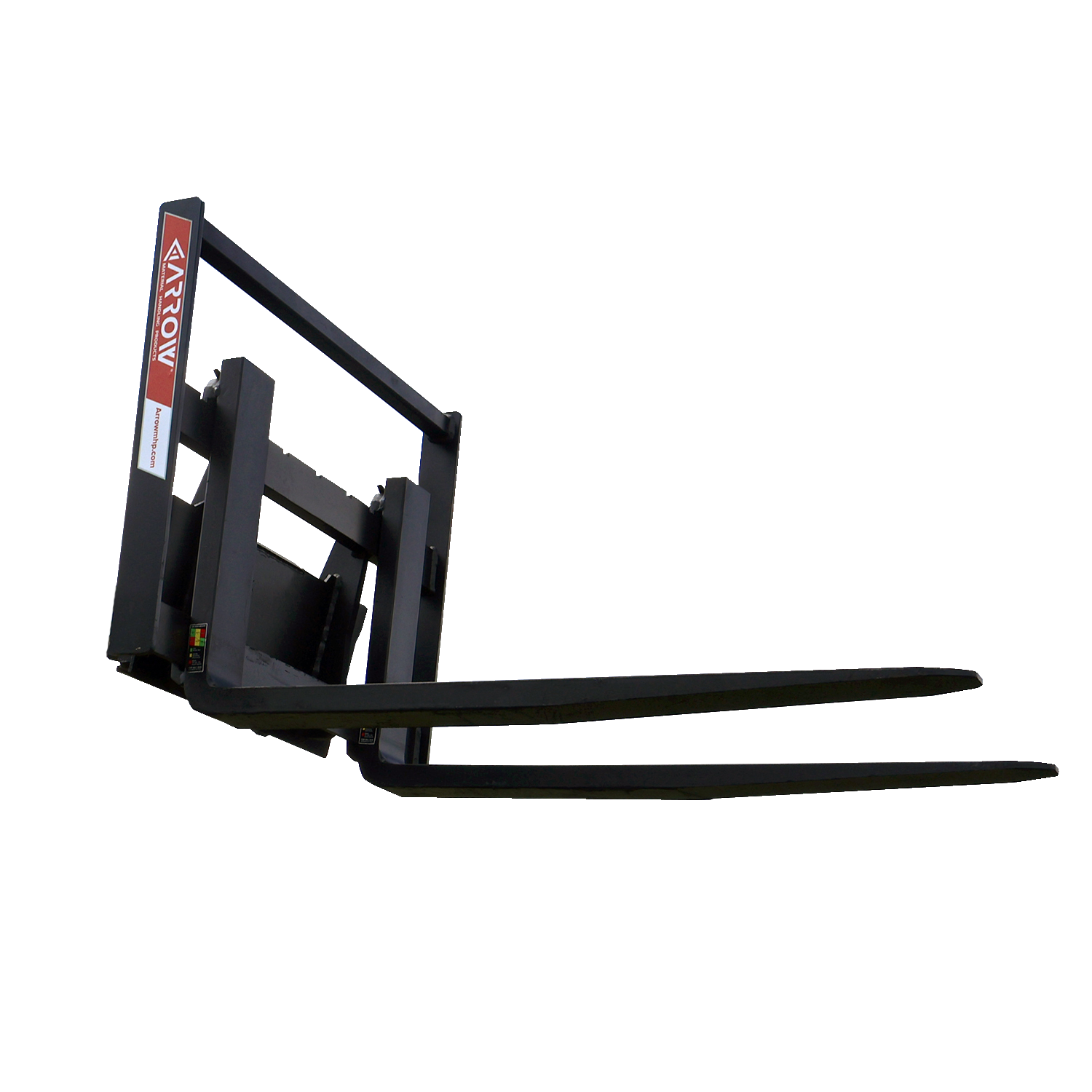

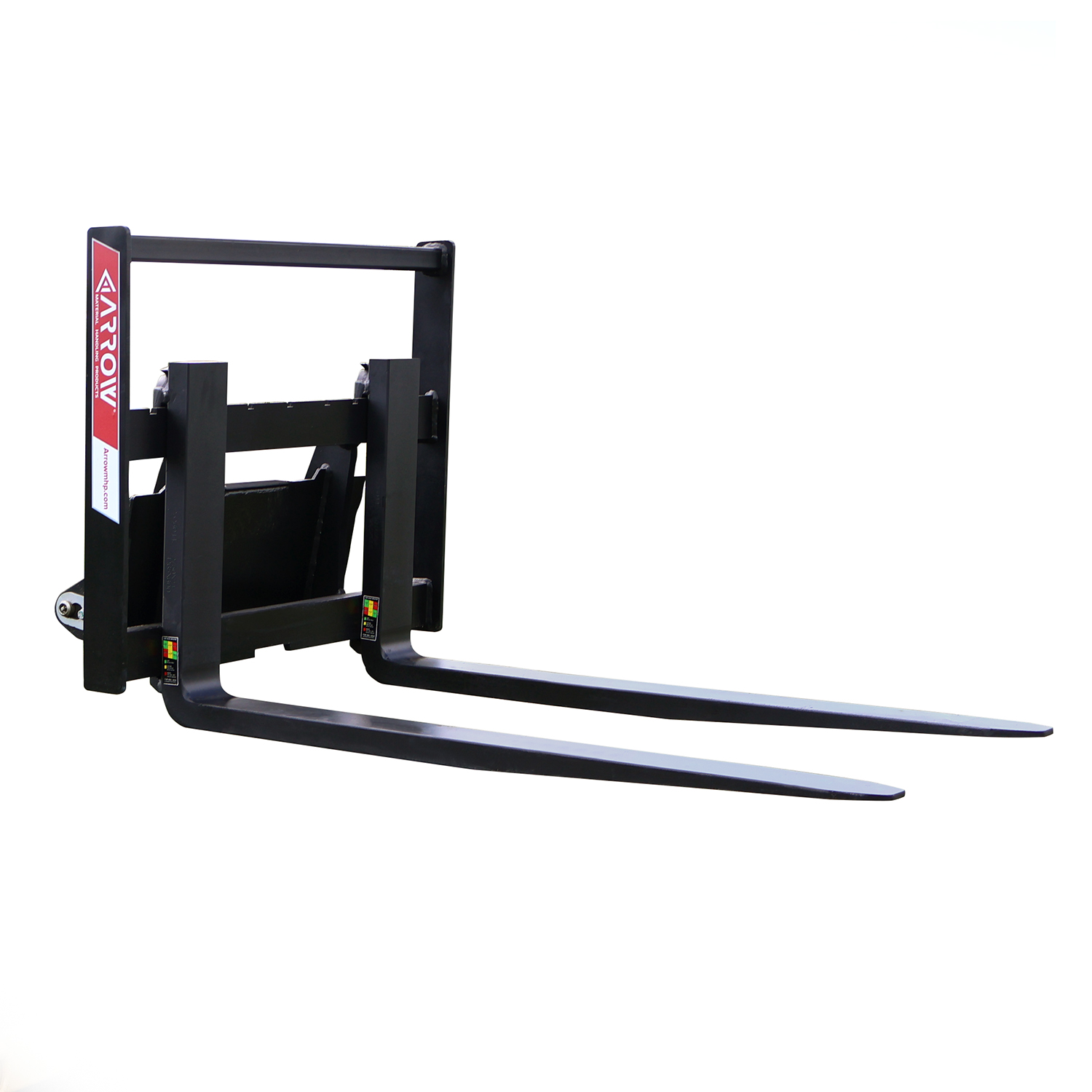

Mini Skid Steer Pallet Forks
- Lightweight frame design
- 3,000 lb capacity assembly
- Mini universal coupler standard
- True 1 ¼” thick ITA Class II upper and lower carriage bar
- Durable steel construction
- Accepts ITA Class II forks

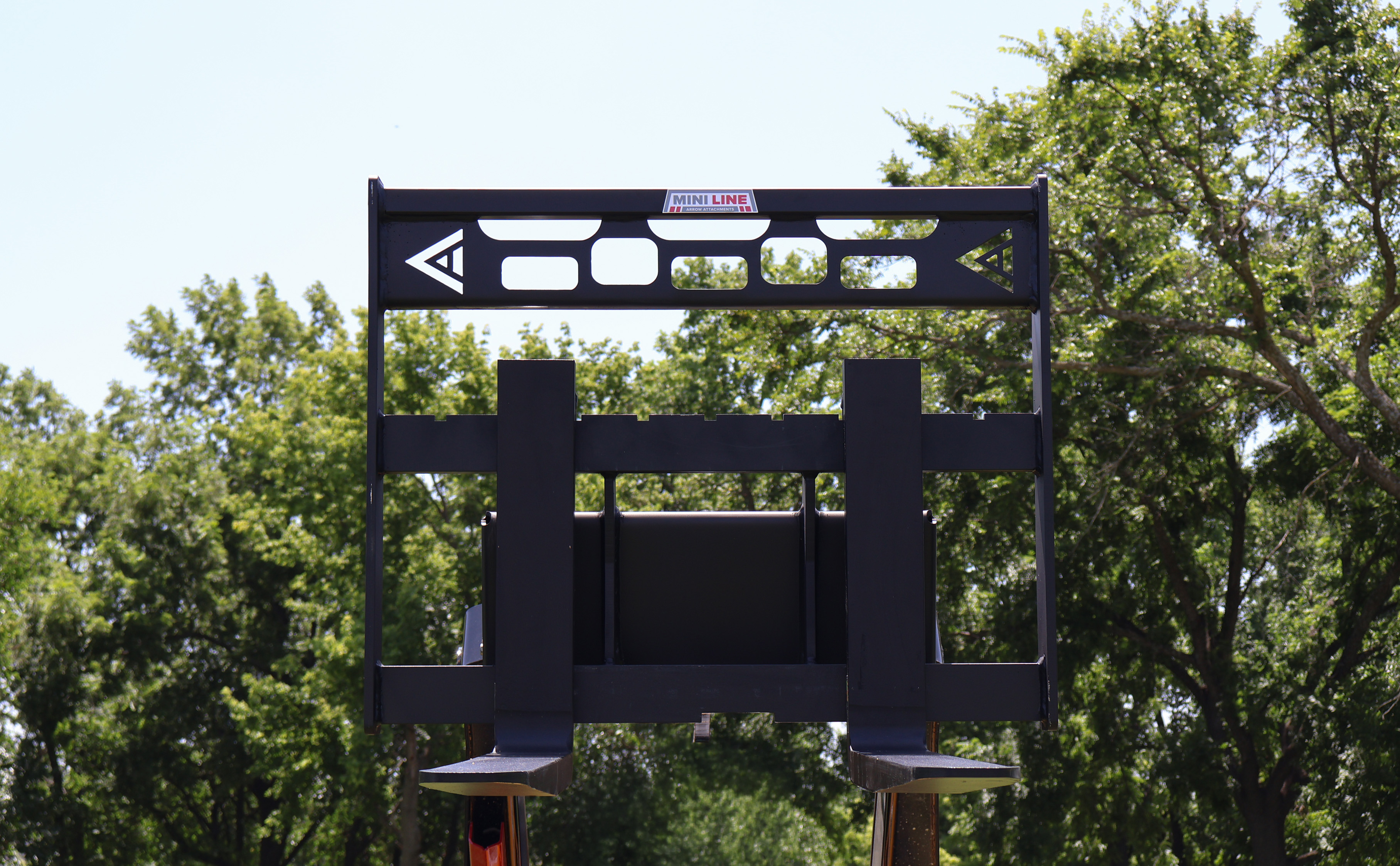

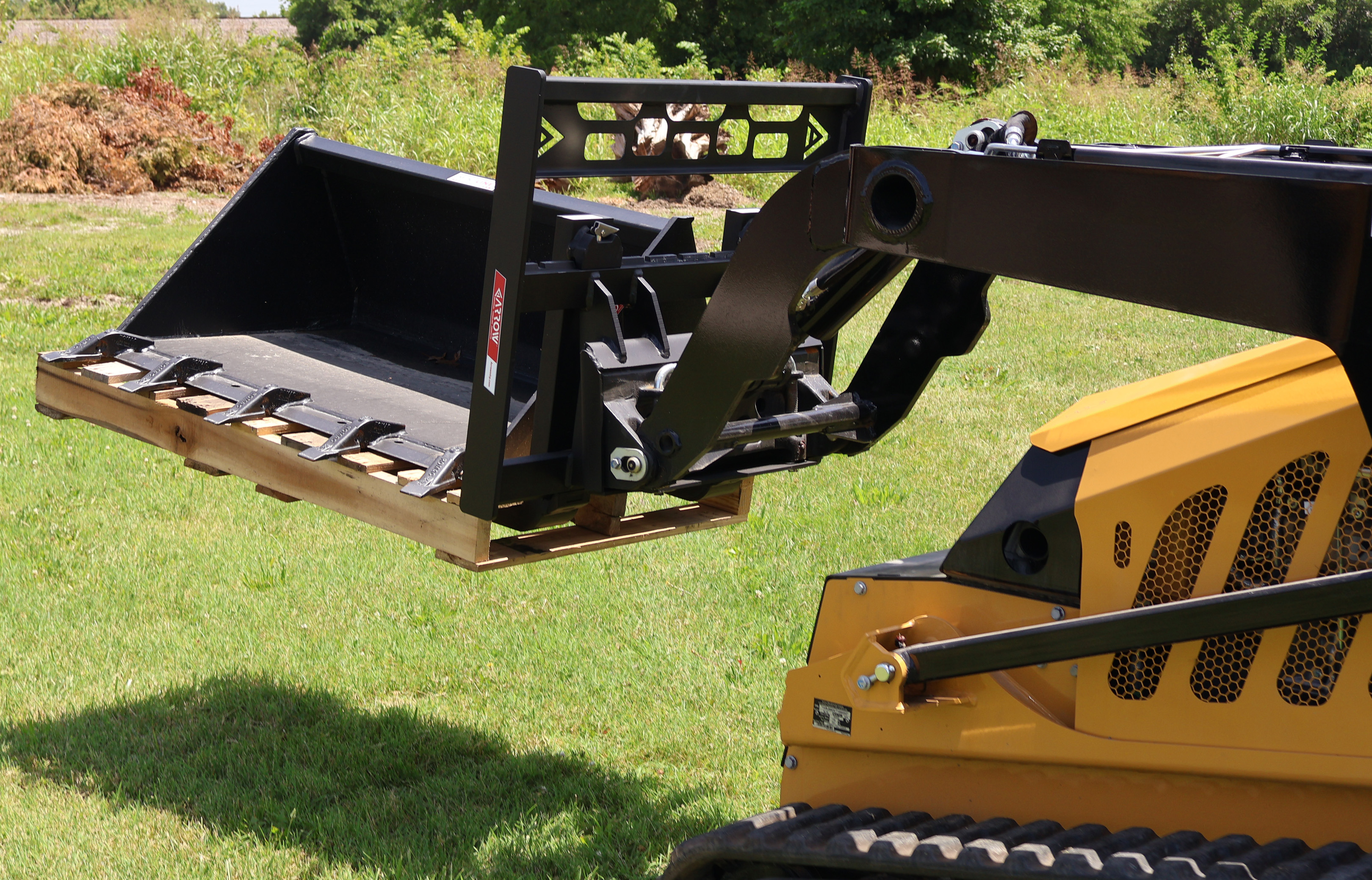

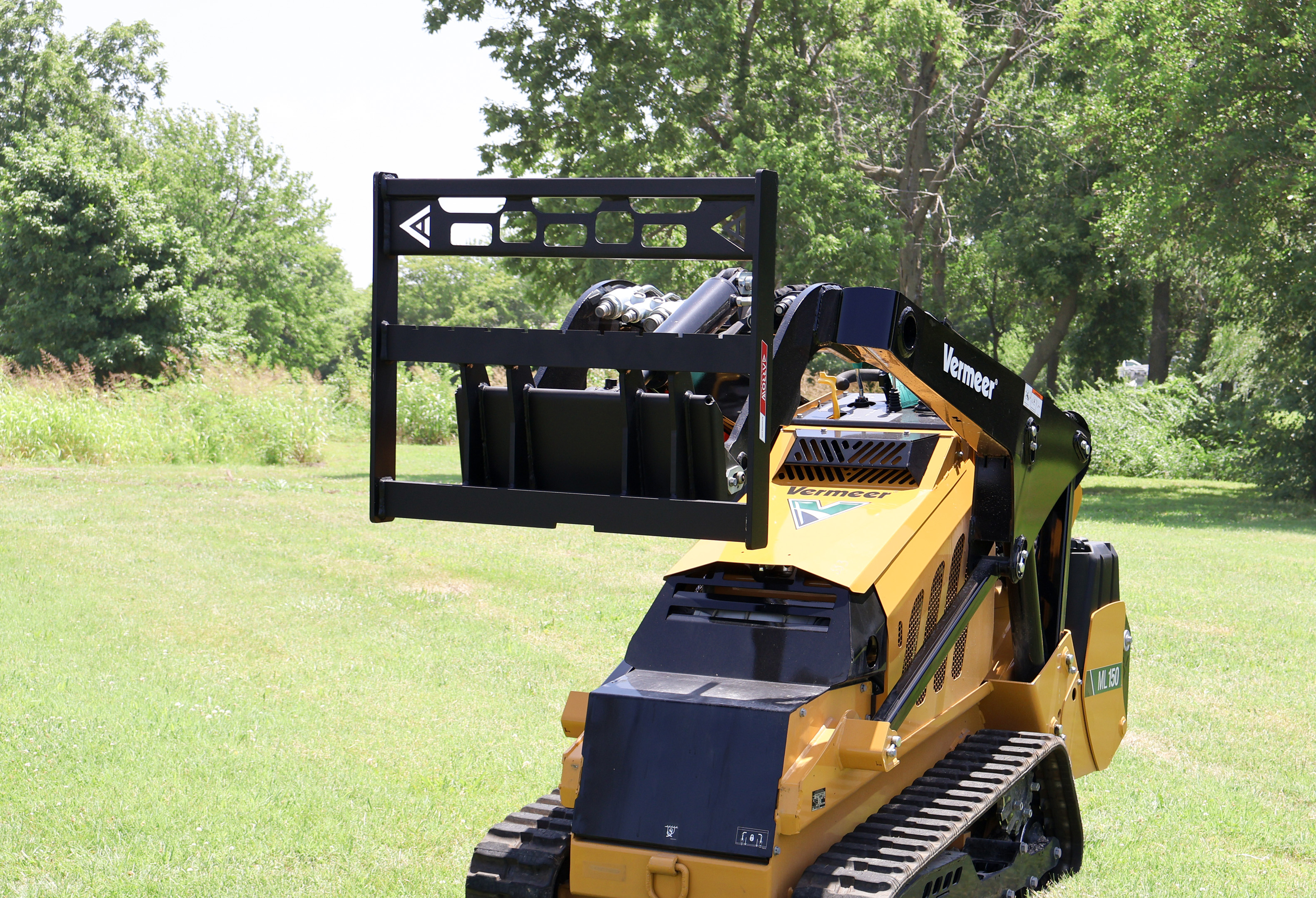

Mini Skid Steer Frame
Max out your walk-behind skid steer or compact tractor with Arrow?s Mini Skid Steer Frame. Built in the USA for heavy-duty performance, this durable frame features a 3,000 lb. capacity to handle demanding jobs with confidence. Designed with a mini universal coupler, with other coupler and hitch options available, the frame accepts standard ITA Class II forks for a versatile setup built to work.
| Part Number | Width | Capacity | Coupler |
| F3134-UNM | 34" | 3,000 lbs | Universal Mini |
| F3140-UNM | 40" | 3,000 lbs | Universal Mini |
| F3134-332 | 34" | 3,000 lbs | Bobcat |
| F3140-332 | 40" | 3,000 lbs | Bobcat |
Additional information
| Capacity | 1,500, 3,000 |
|---|
